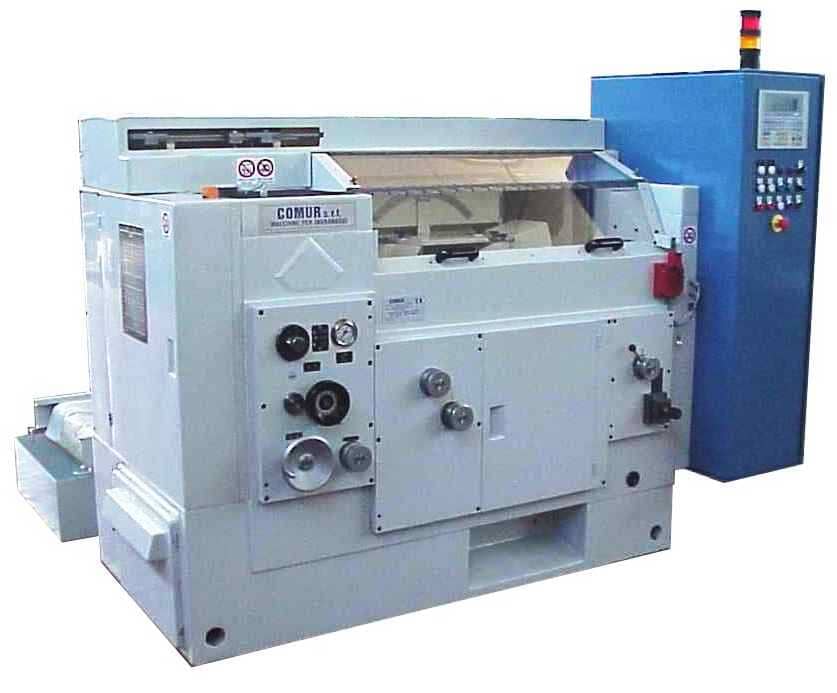

Hob shapening machine

Max. external diameter for cutters with screw grooves mm 230
Max. outside diameter for cutters with straight grooves mm 250
Min. cutters diameter mm 0
Max. groove depth 50 mm
Min. groove distance 5"
Max. groove distance
Max. helix angle of the groove 45°
Grooves from 3 to 45
Maxi. slide stroke 475 mm
Max. grinding wheel diameter mm 250
Min. grinding wheel diameter 180 mm
Grinding wheel revolutions from 1500 to 2700 rpm
Slide stroke speed (progressively adjustable) m/min from 0 to 12
ISO 40 workpiece holder spindle centring cone
Weight Kg. 3600
Connected power supply Kw 9,5

Max. external diameter for cutters with screw grooves mm 420
Max. outside diameter for cutters with straight grooves mm 420
Min. cutters diameter mm 0
Max. groove depth 110 mm
Min. groove distance 5"
Max. groove distance
Max. helix angle of the groove 45°
Grooves from 3 to 45
Maxi. slide stroke 800 mm
Max. grinding wheel diameter mm 350
Min. grinding wheel diameter 240 mm
Grinding wheel revolutions from 1300 to 1900 rpm
Slide stroke speed (progressively adjustable) m/min from 0 to 20
ISO 40 workpiece holder spindle centring cone
Weight Kg. 3600
Connected power supply Kw 9,5
