Gerar shaping machine

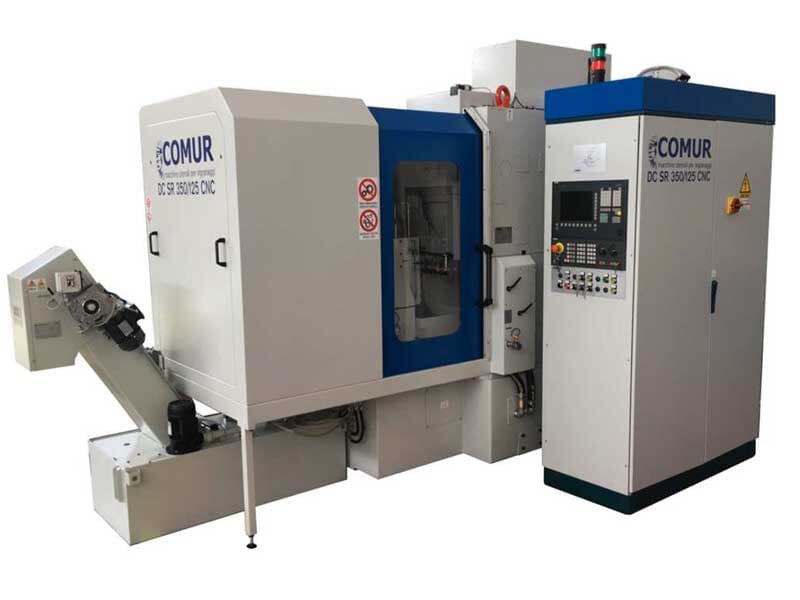

COMUR DC 350-110 CNC
Technical
data
Max nominal module (straight toothing) mm 6
Max nominal module (helical toothing) mm 5
Max nominal outside diameter (external) mm 350
Max shaping width mm 100
Max cutter spindle travel mm 110
Manual adjustment of spindle mm 76
Riser block (height) mm 702
Spindle stroking speeds (hydro guide) RPM 100÷800
External diameter mm 365
Diameter of bore through table mm 150
Length mm 3890
Width mm 3250
Height (on 70mm PADS) mm 2650
Weight Kg 5500

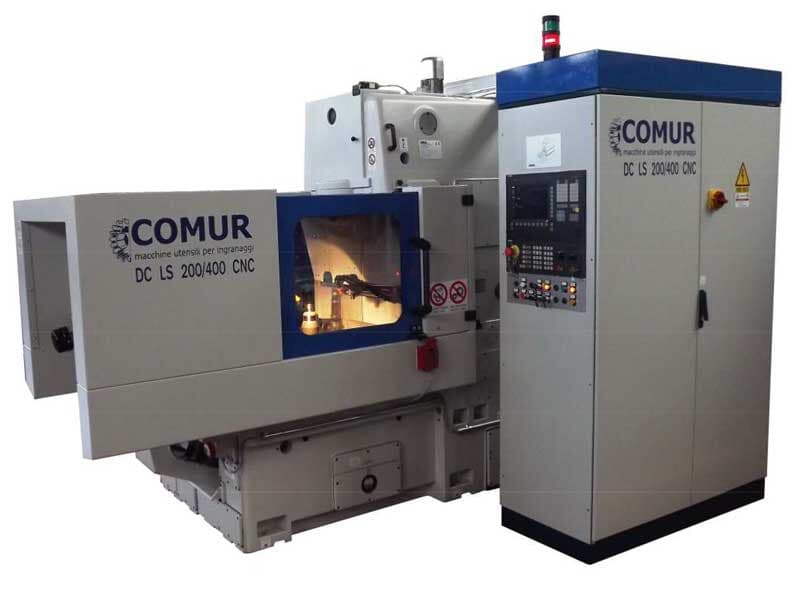

COMUR DC 400 CNC
Technical data
Max nominal module (straight toothing) mm 6
Max nominal module (helical toothing) mm 5
Max nominal outside diameter (external) mm 400
Max shaping width mm 74
Max cutter spindle travel mm 84
Riser block (height) mm 200
Spindle stroking speeds (hydro guide) RPM 250÷1000
External diameter mm 300
Diameter of bore through table mm 100
Length mm 2896
Width mm 1558
Height (on 70mm PADS) mm 2465
Weight Kg 6000

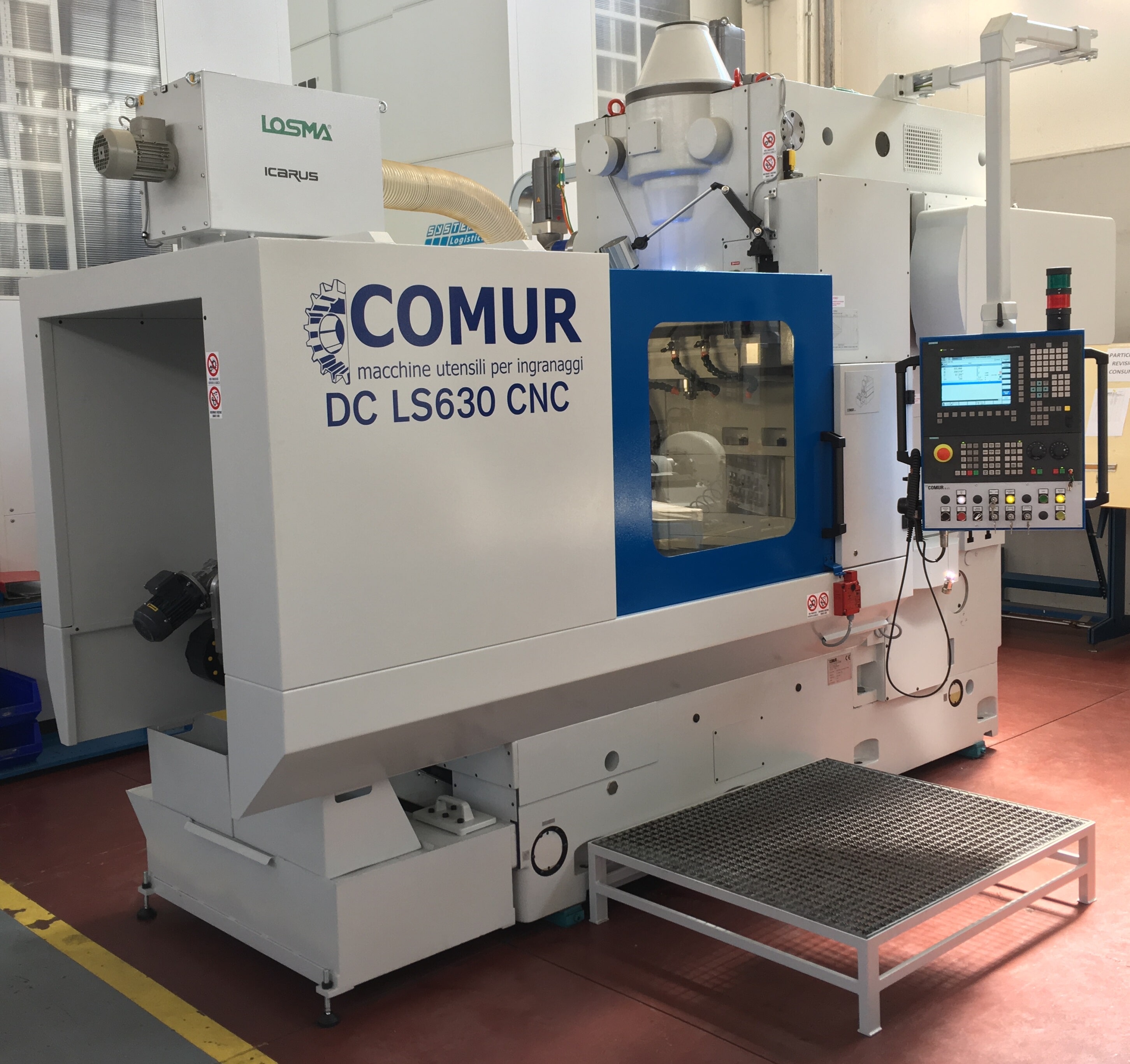

COMUR DC 630 CNC
Technical
data
Max nominal module (straight toothing) mm 10
Max nominal module (helical toothing) mm 8
Max nominal outside diameter (external) mm 650
Max shaping width mm 200
Max cutter spindle travel mm 230
Riser block (height) mm 250
Spindle stroking speeds (hydro guide) RPM 20÷400
External diameter mm 735
Diameter of bore through table mm 400
Length mm 4452
Width mm 4065
Height (on 70mm PADS) mm 3125
Weight Kg 10000

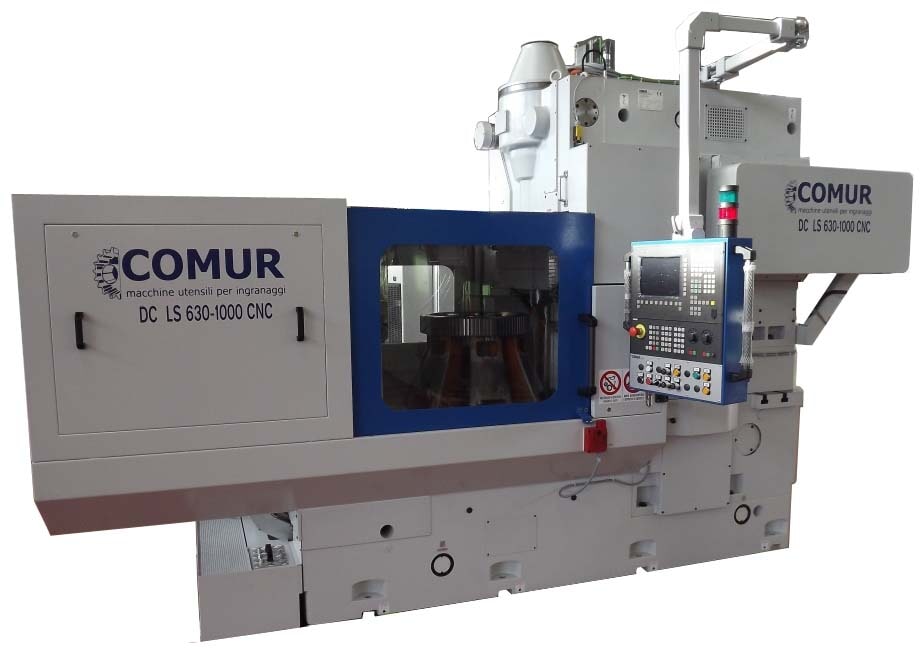

COMUR DC 1000 CNC
Technical
data
Max nominal module (straight toothing) mm 12
Max nominal module (helical toothing) mm 10
Max nominal outside diameter (external) mm 1100
Max shaping width mm 200
Max cutter spindle travel mm 230
Riser block (height) mm 250
Spindle stroking speeds (hydro guide) RPM 20÷400
External diameter mm 1000
Diameter of bore through table mm 400
Length mm 4220
Width mm 1430
Height (on 70mm PADS) mm 3015
Weight Kg 10000

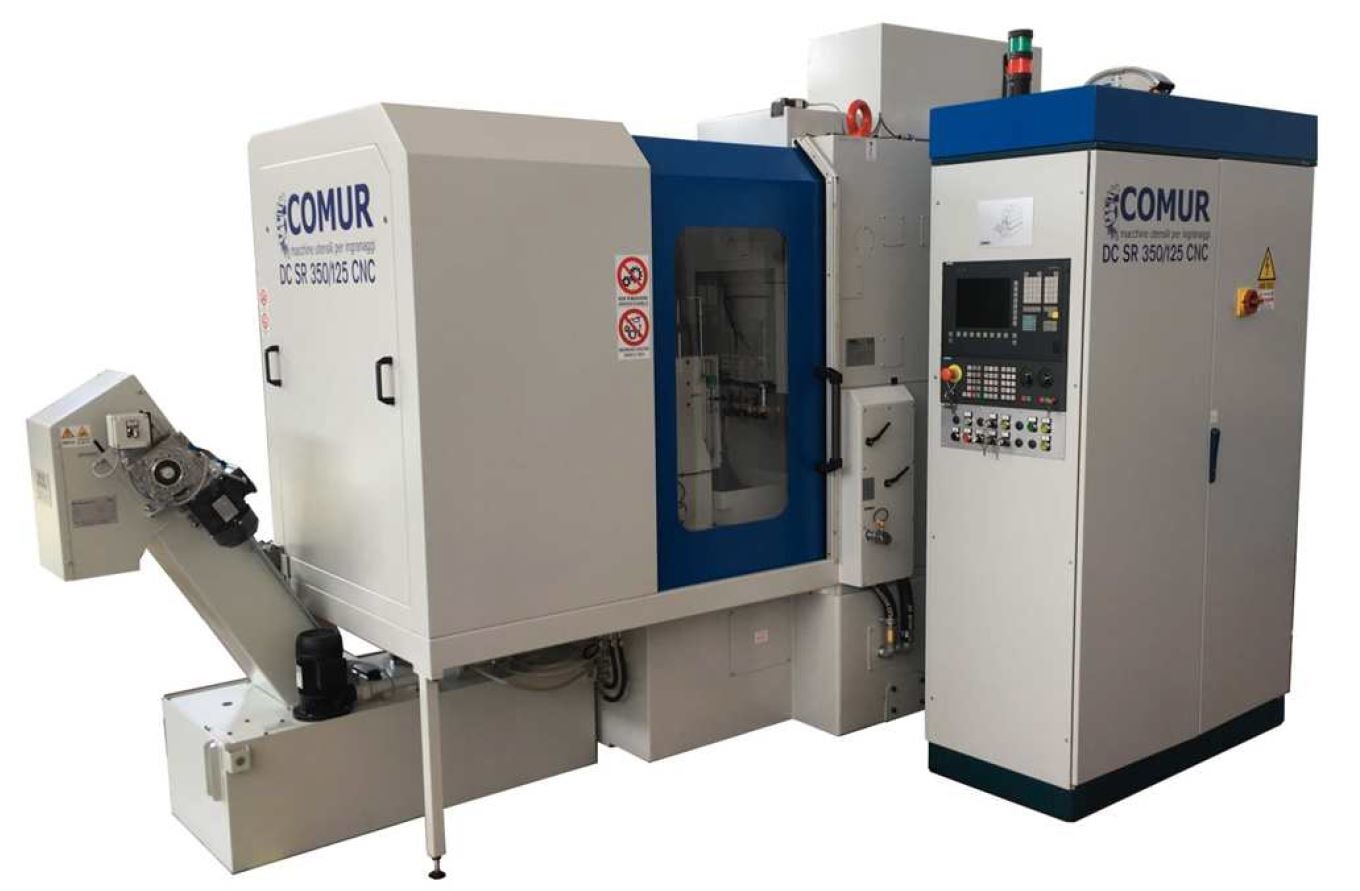

COMUR DC 350/110 CNC COMUR
Technical data
Max nominal module M 6
Max outside diameter allowed mm 400
Max shaping width mm 100
Max cutter spindle travel mm 110
Manual adjustment of spindle mm 76
Riser block (height) on request
Spindle stroking speeds (hydro guide) strokes/min 100÷800
External table diameter mm 365
Diameter of bore through table mm 150
Length mm 3890Width mm 3250
Height (on 70mm PADS) mm 2650
Weight Kg 5500
