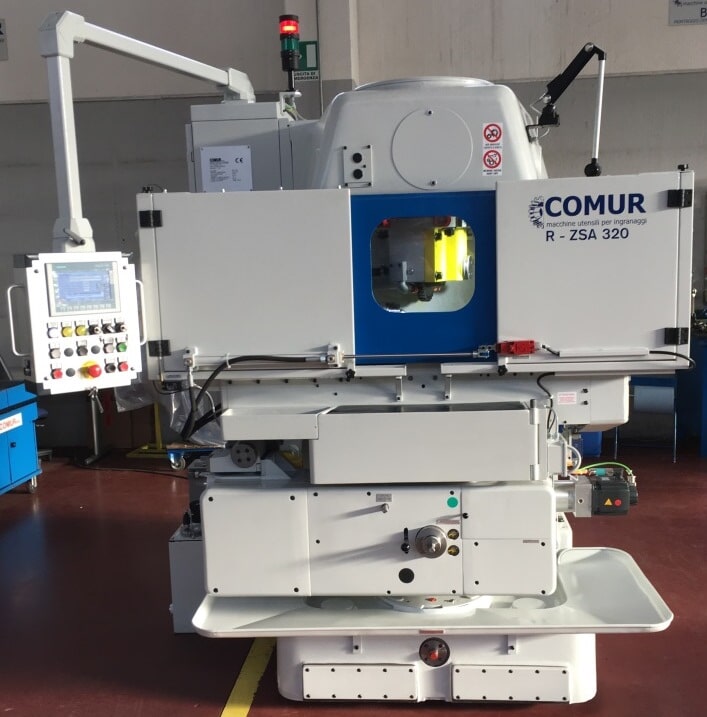

Gear shaving machine

Max. nominal module mm 4
Max. workpiece diameter mm 150
Max. hobbing width mm 150
Max. tailstock travel mm 470
Diameter of bore trough table mm 160/mm 63
Max. tool dimensions (ø x L) mm 120 x mm 220
Max. Y travel (shifting) mm 170
Hob arbor taper SK40 hydraulic
Hob speed range 600 rpm
Worktable speed range 0 ÷ 80 rpm
Max swivel angle ± 30°
Weight Kg. 7.000
Connected power supply Kw 33
