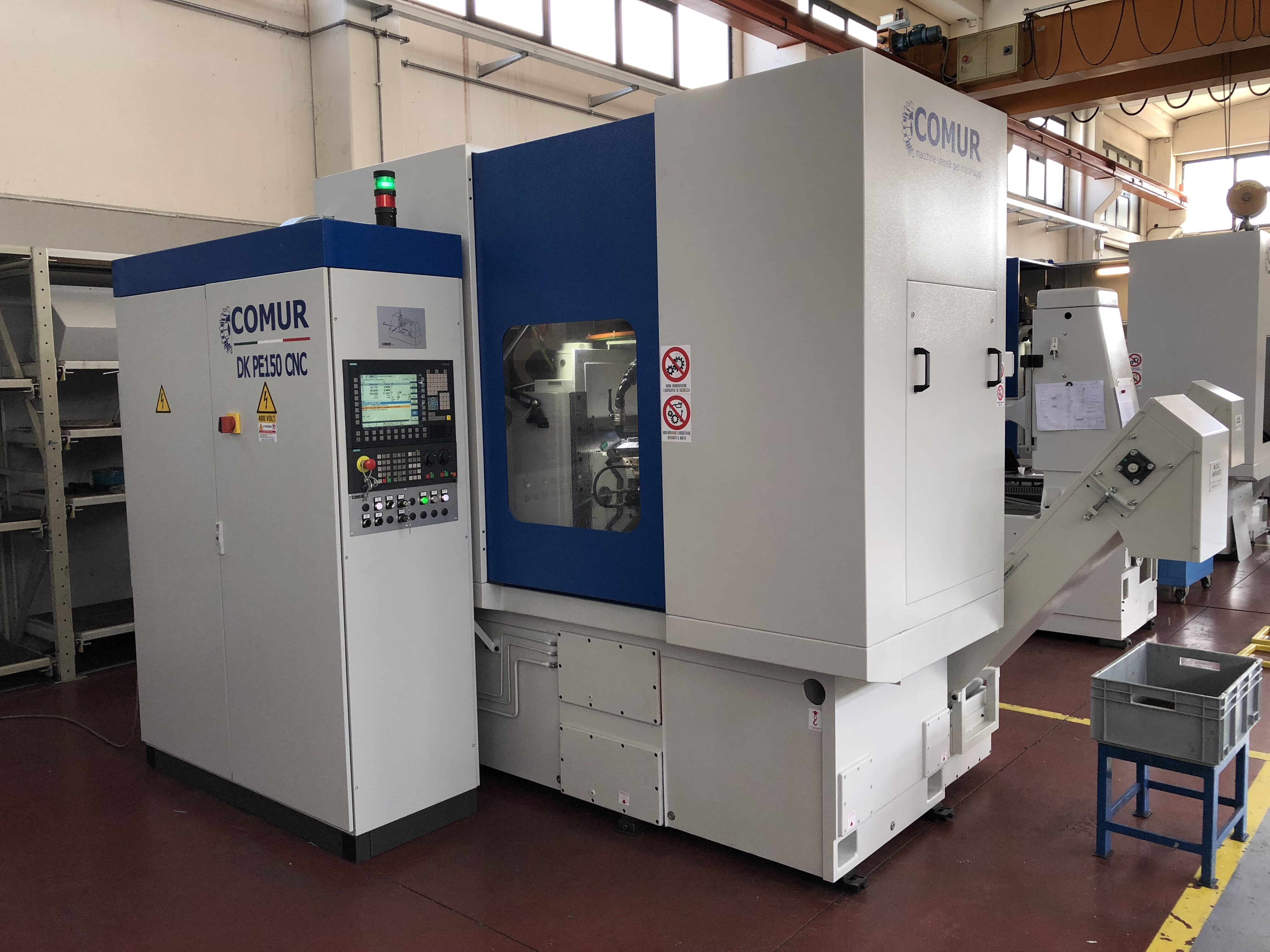

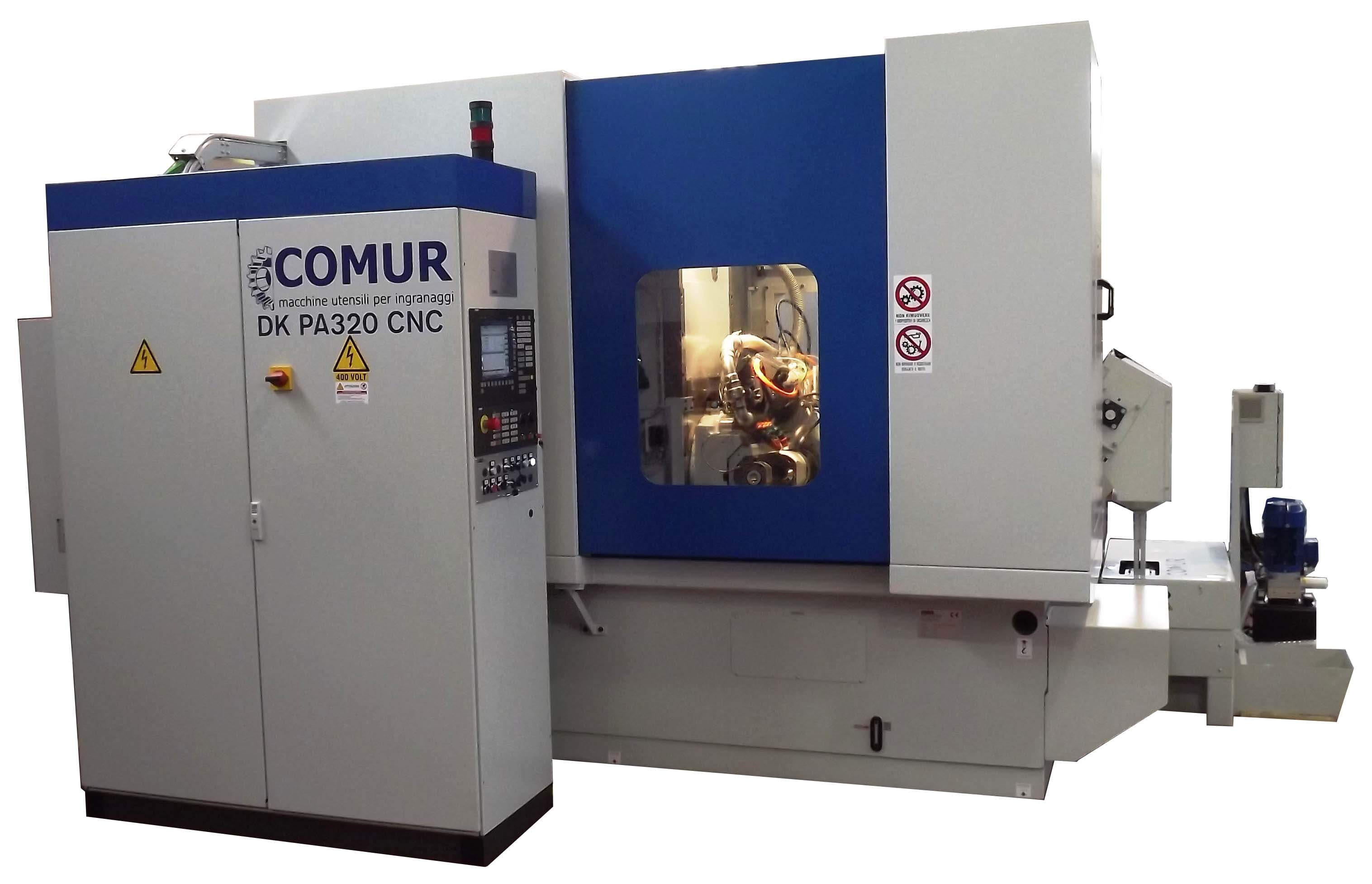

Gear hobbing machine
COMUR DK 150 CNC
Technical
data
Max. nominal module mm 4
Max. workpiece diameter mm 150
Max. hobbing width mm 150
Max. tailstock travel mm 470
Diameter of bore trough table mm 160/mm 63
Max. tool dimensions (ø x L) mm 120 x mm 220
Max. Y travel (shifting) mm 170
Hob arbor taper SK40 (hydraulic)
Hob speed range 600 rpm
Worktable speed range 0 ÷ 80 rpm
Max swivel angle +30°
Weight Kg. 7.000
Connected power supply Kw 33
COMUR DK 400 CNC
Technical
data
Max. nominal module mm 8
Max. workpiece diameter mm 400
Max. hobbing width mm 250 (300 option)
Max. tailstock travel mm 470
Diameter of bore trough table mm 80
Max. tool dimensions (ø x L) mm 163 x mm 230
Max. Y travel (shifting) mm 180
Hob arbor taper SK40 (hydraulic)
Hob speed range 450 rpm (600 option)
Worktable speed range 0 ÷ 55 rpm
Max swivel angle +40° ÷ -45°
Weight Kg. 9.000
Connected power supply Kw 40

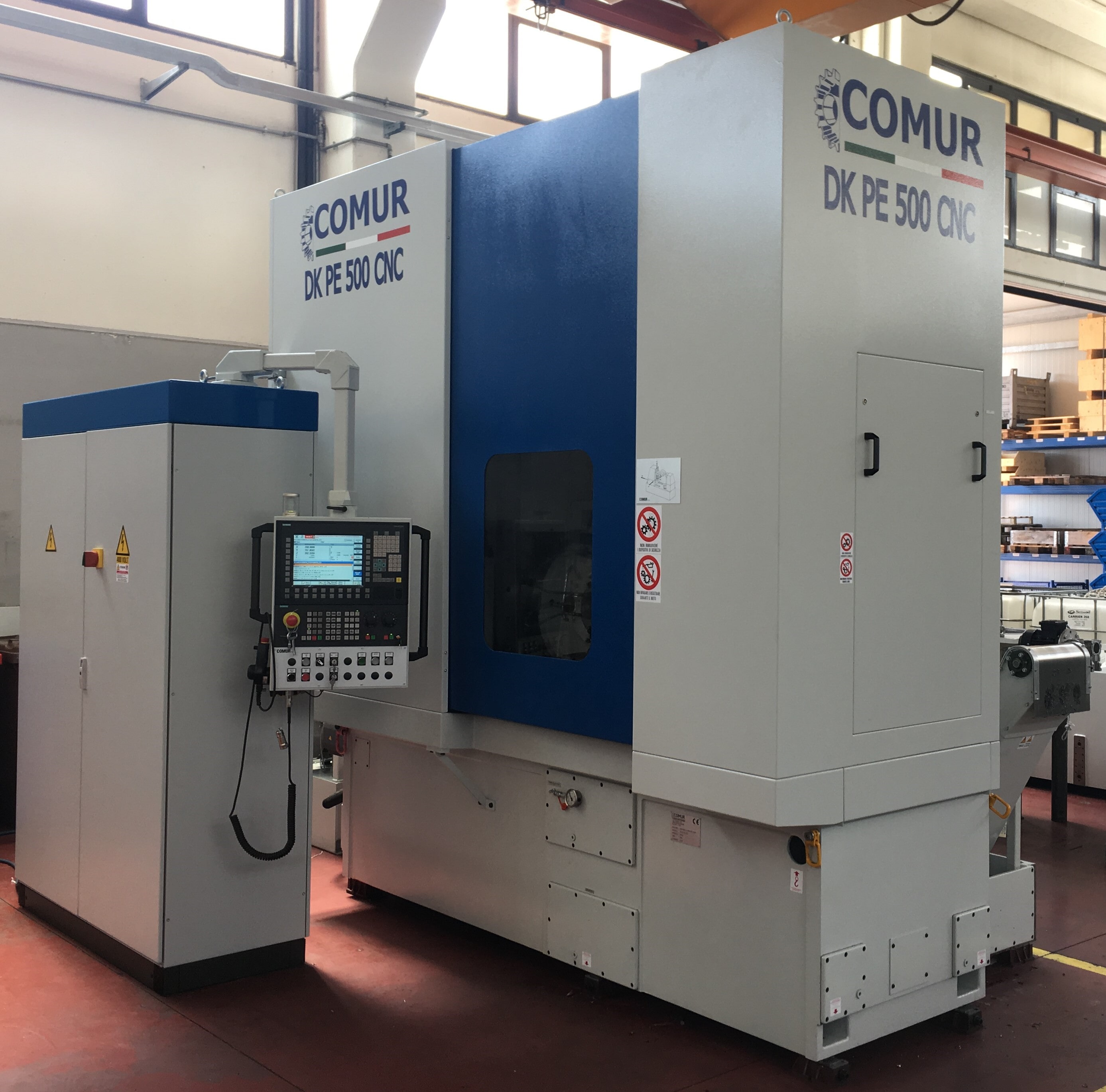

COMUR DK 500 CNC
Technical
data
Max. nominal module mm 14
Max. workpiece diameter mm 1000
Max. hobbing width mm 700
Max. tailstock travel mm 1275
Diameter of bore trough table mm 780/mm 180
Max. tool dimensions (ø x L) mm 210 x mm 240
Max. Y travel (shifting) mm 300
Hob arbor taper ISO50 hydraulic
Hob speed range 450 rpm (600 option)
Worktable speed range 0 ÷ 15 rpm
Max swivel angle -45°
Weight Kg. 13.000
Connected power supply Kw 72

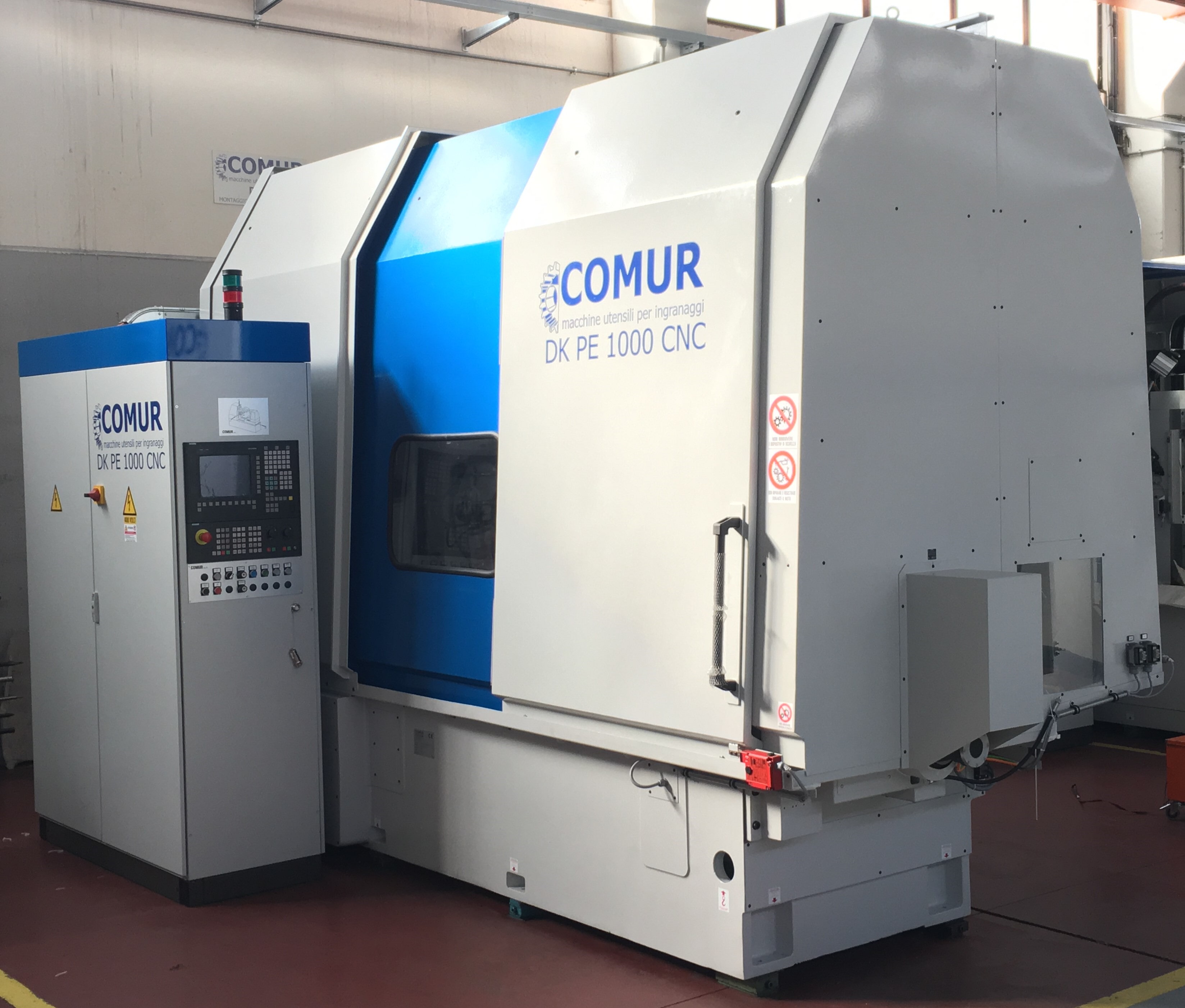

COMUR DK 1000 CNC
Technical
data
Maximum nominal module 14 mm
Maximum diameter of teeth mm 1000
Useful working length mm 700
Maximum length allowed between the tips mm 1275
Table diameter / table passage hole mm 780 / mm 180
Maximum admissible creator dimensions (ø x L) 210 x 240 mm
Tangential travel / change 300
MmHydraulic ISO50 port plug connection
Creator revolutions 20 ÷ 450 rpm (600 with option)
Table turns 0 ÷ 15 rpm Head inclination ± 45 °
Machine weight without packaging Kg 13000
Installed power Kw 72

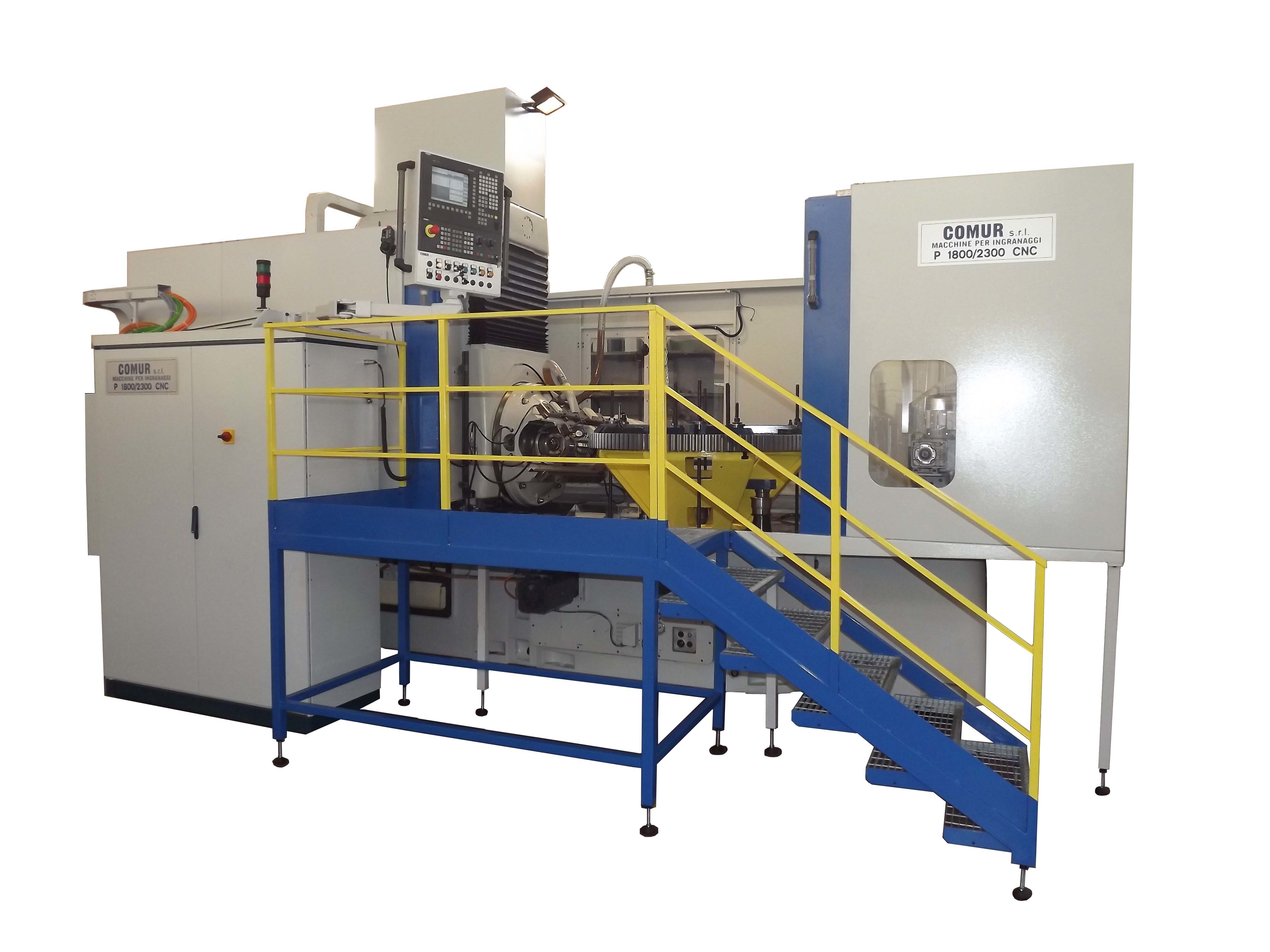

COMUR DK 2500 CNC
Technical
data
Max. nominal module mm 18
Max. workpiece diameter mm 2500
Max. hobbing width mm 700
Max. tailstock travel mm 1475
Diameter of bore trough table mm 1400/mm 250
Max. tool dimensions (ø x L) mm 290 x mm 330
Max. Y travel (shifting) mm 300
Hob arbor taper C.M. 6
Hob speed range 12÷200 rpm
Worktable speed range 0 ÷ 5 rpm
Max swivel angle 45° ÷ - 135°
Weight Kg. 22.000
Connected power supply Kw 52

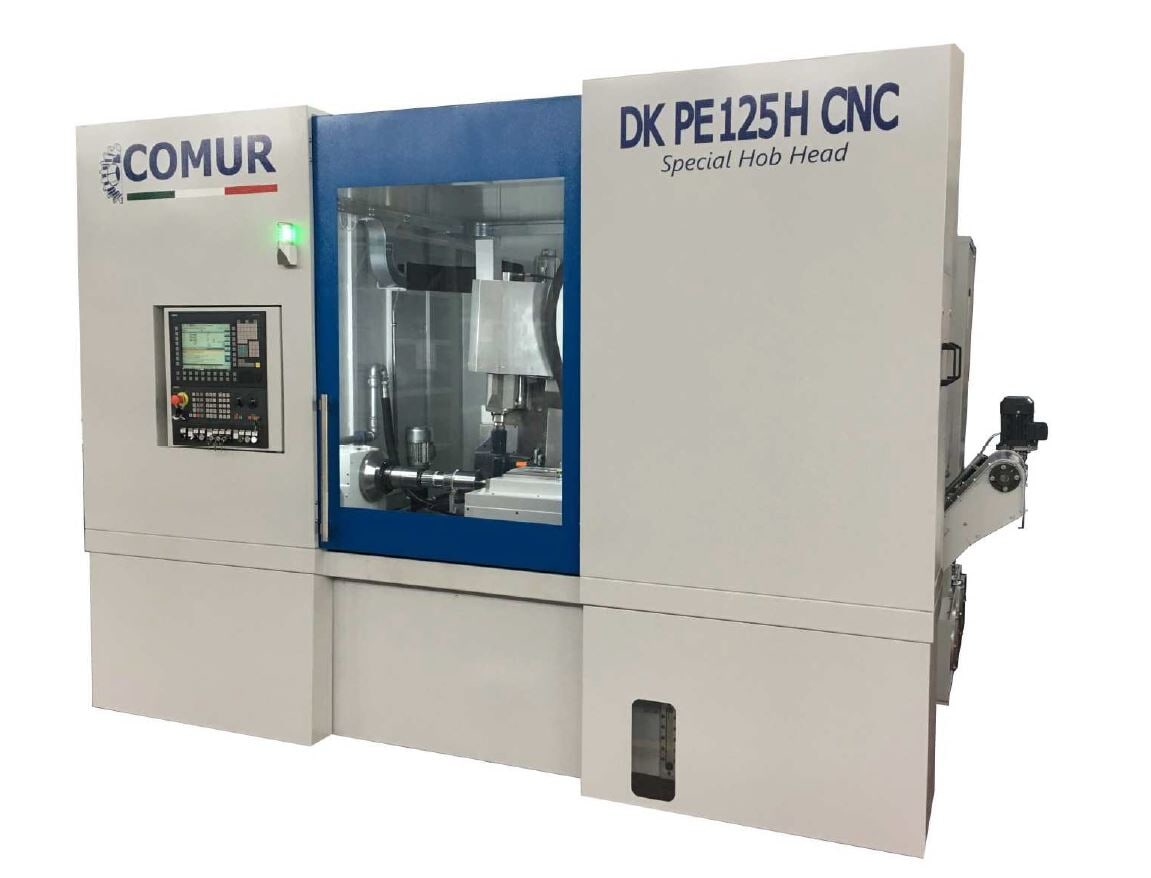

COMUR DK 150H CNC
Technical data
Max. nominal module M 5
Max. workpiece diameter mm 150
Max. hobbing width mm 500
Max. tailstock travel mm 730
External table diameter / diameter of bore trough table mm 160 / mm 63
Max. tool dimensions (ø x L) mm 150 x mm 330
Max. Y travel (shifting) mm 300
Hob arbor taper SK40 (hydraulic)Hob speed range 0 ÷ 1250 rpm
Worktable speed range 0 ÷ 500 rpm
Max swivel angle +40° ÷ -45°
Weight Kg. 7.000Connected power supply Kw 52
